EN 857 2SC (up to 1") - ISO 11237 - SAE 100
R16
Tube: oil resistant synthetic rubber.
Reinforcement: two high tensile steel braids.
Cover: smooth up to 1", wrapped over 1". Abrasion, ozone and hydrocarbon resistant synthetic rubber.
Application: high pressure hydraulic lines, fuel oil, antifreeze solutions, air and water.
Temperature: -40 ?C +100 ?C (-40 ?F +212 ?F)
air max T = +70 ?C (+160 ?F)
Length: random up to 1" - 61 m max over 1"1/4

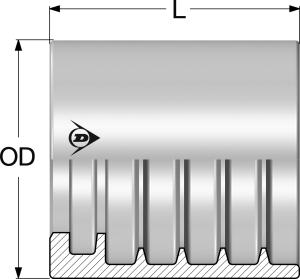

DH SCAN crimp short code: (http://crimp.dunlophiflex.se/Home/Index/DK): FXP2-R
